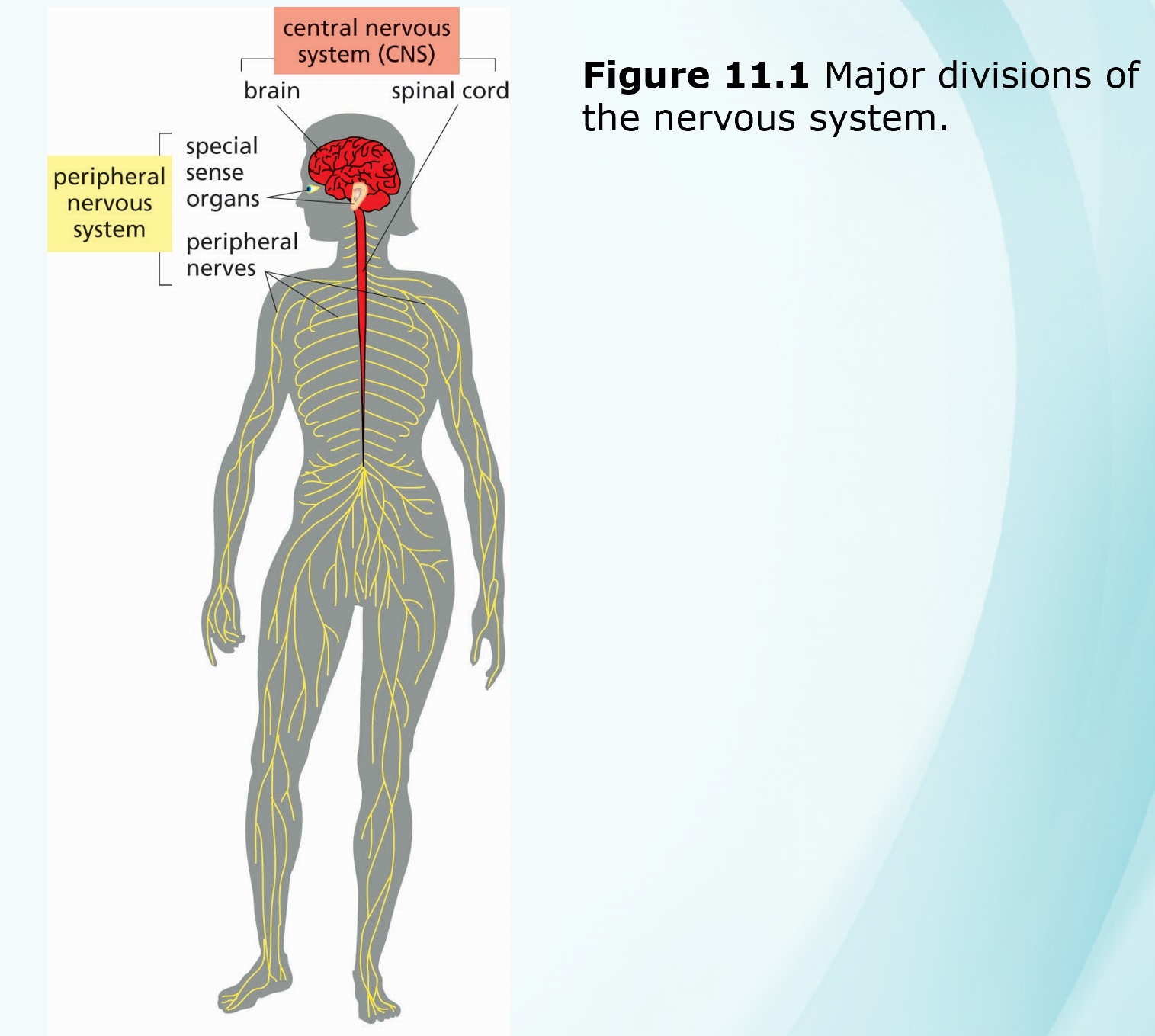

Nervous System and senses

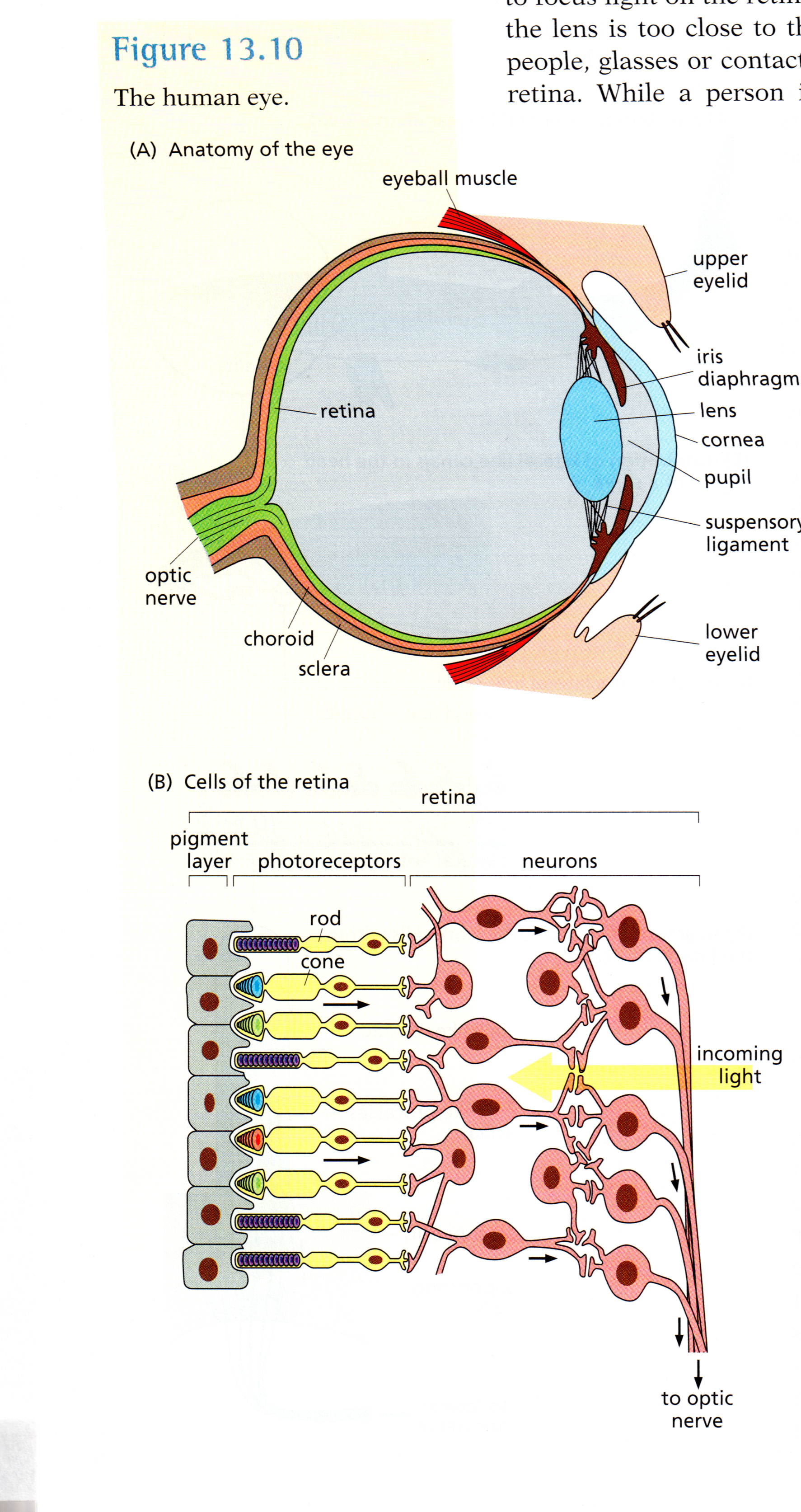

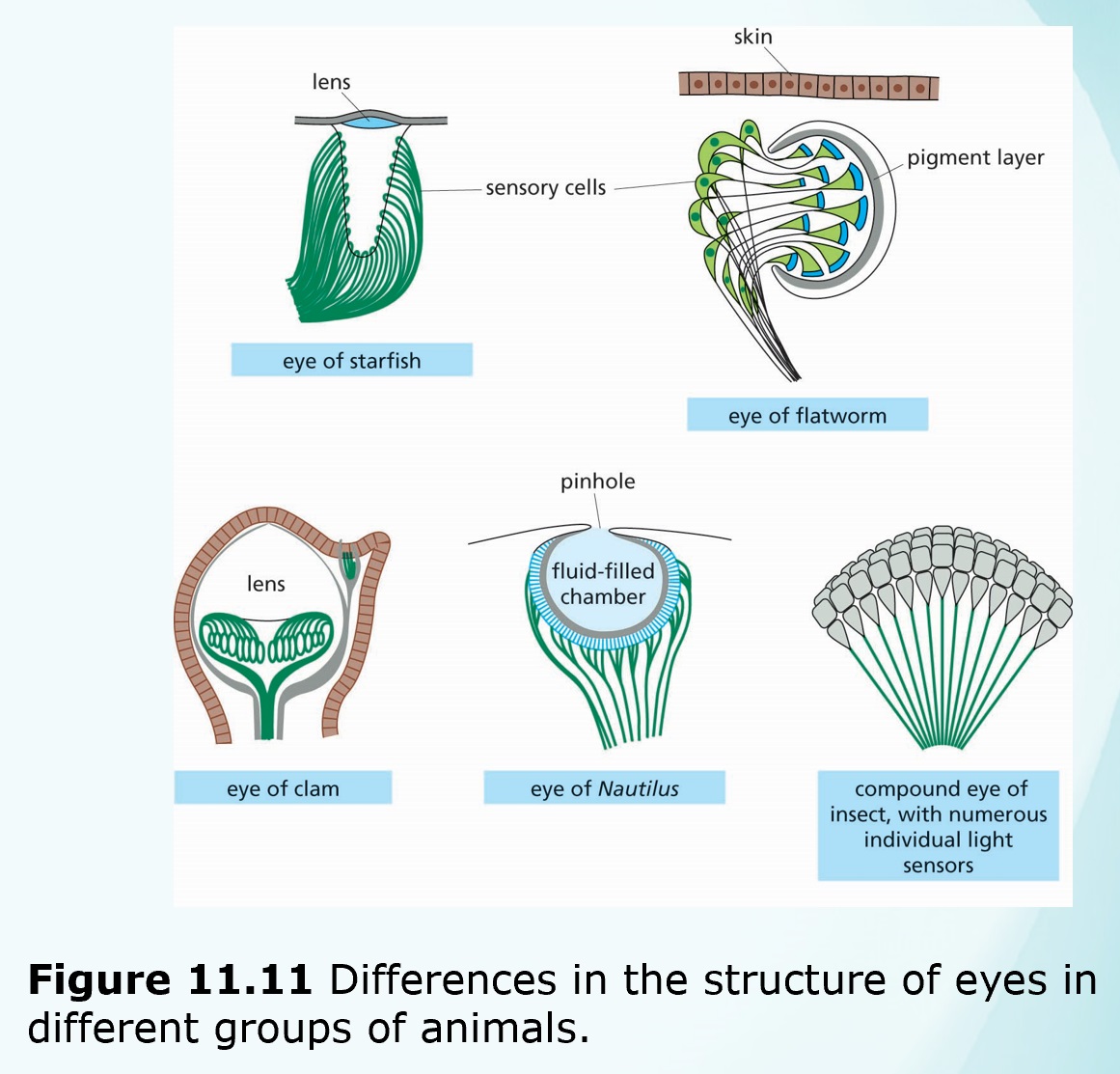

Sense organs: Vertebrate Eye

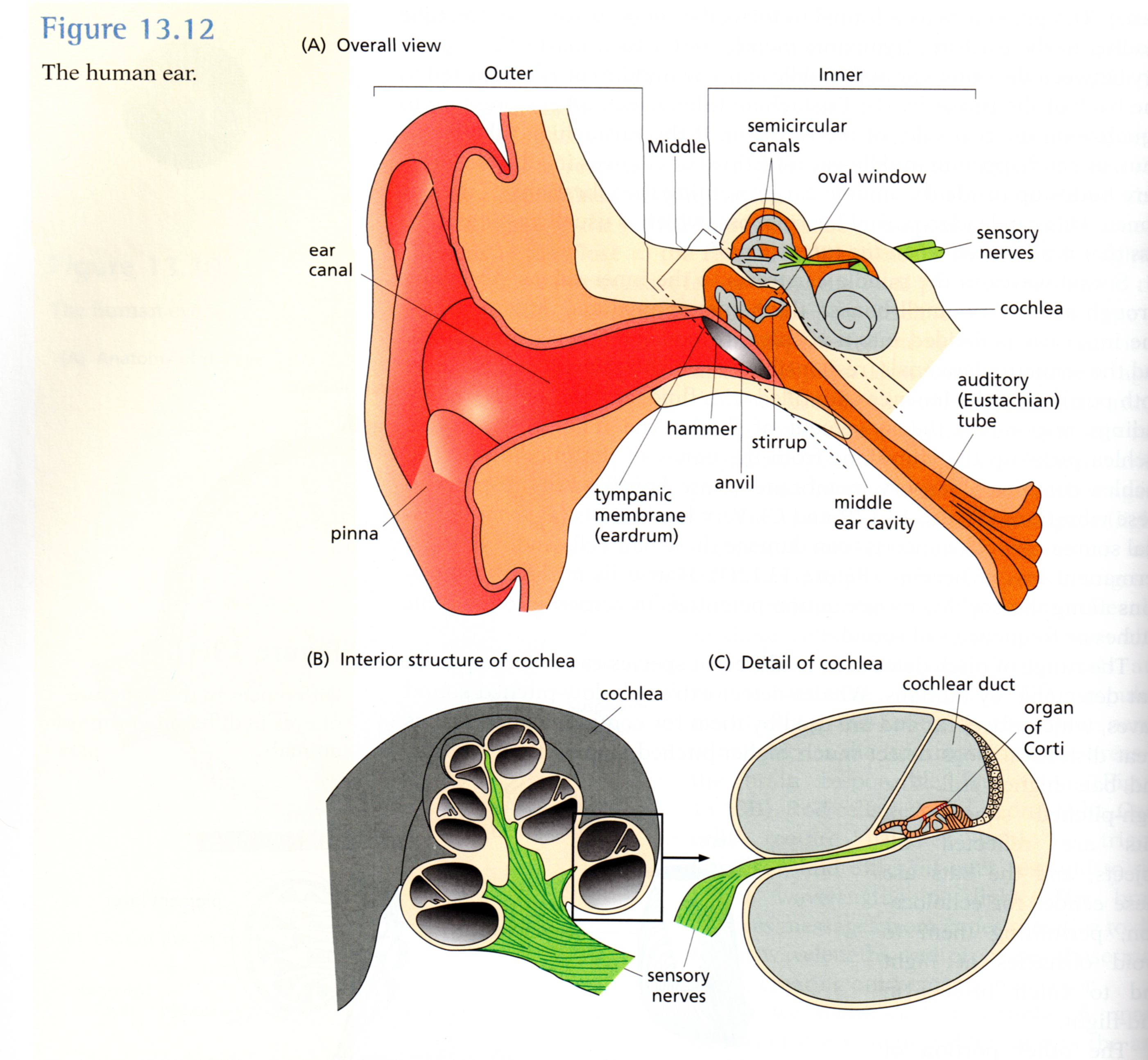

Sense organs: Human Ear

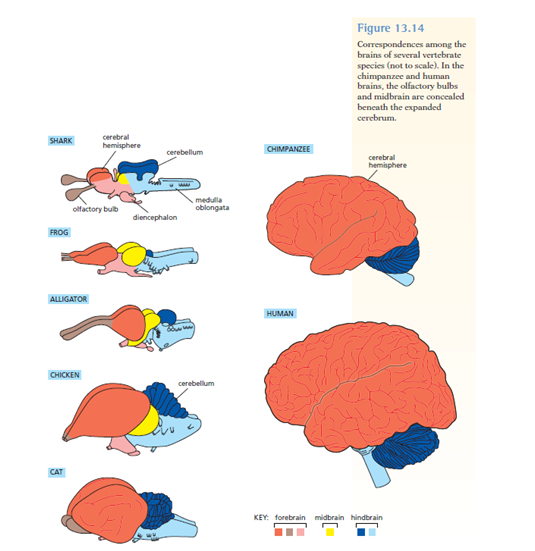

Vertebrate brains

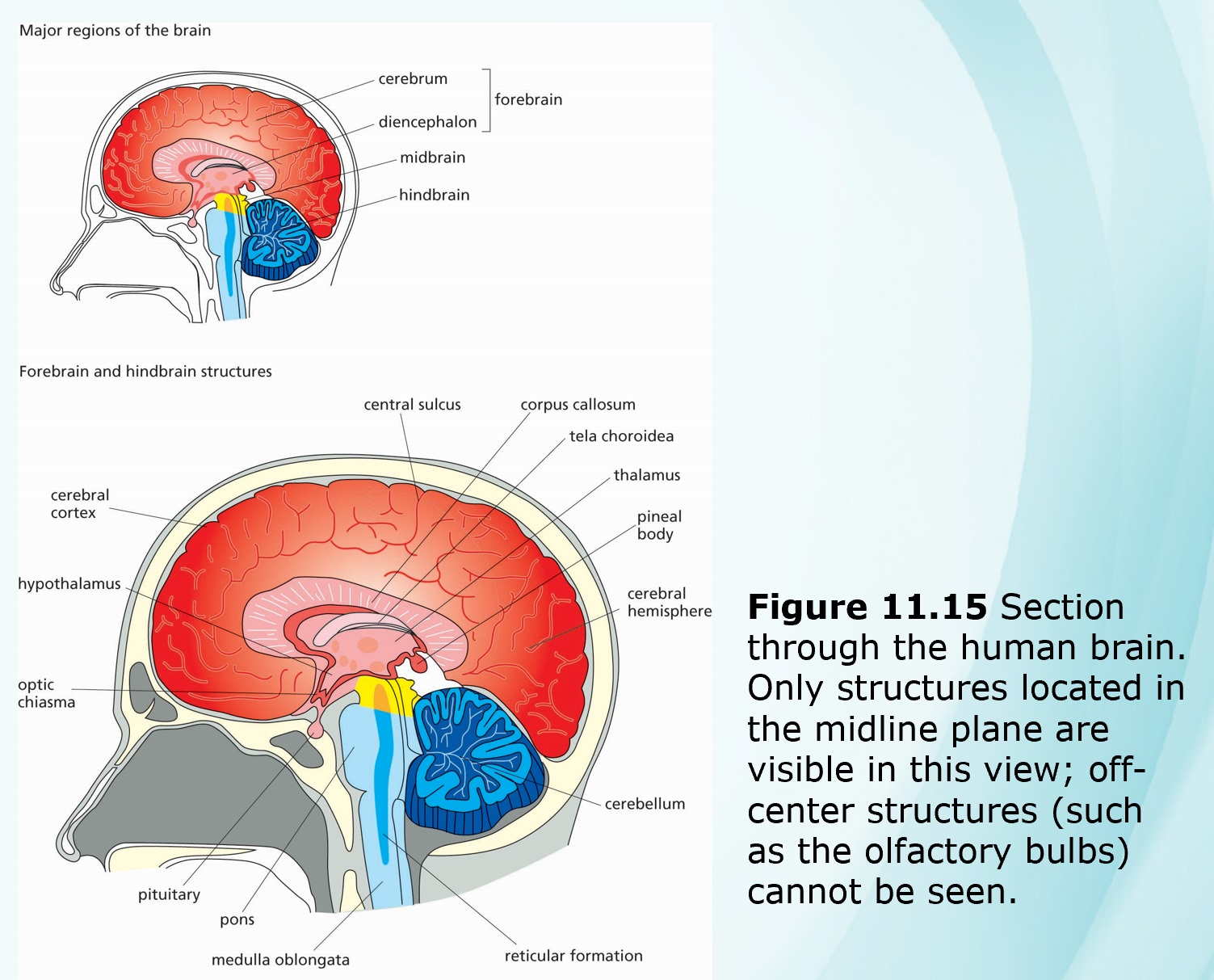

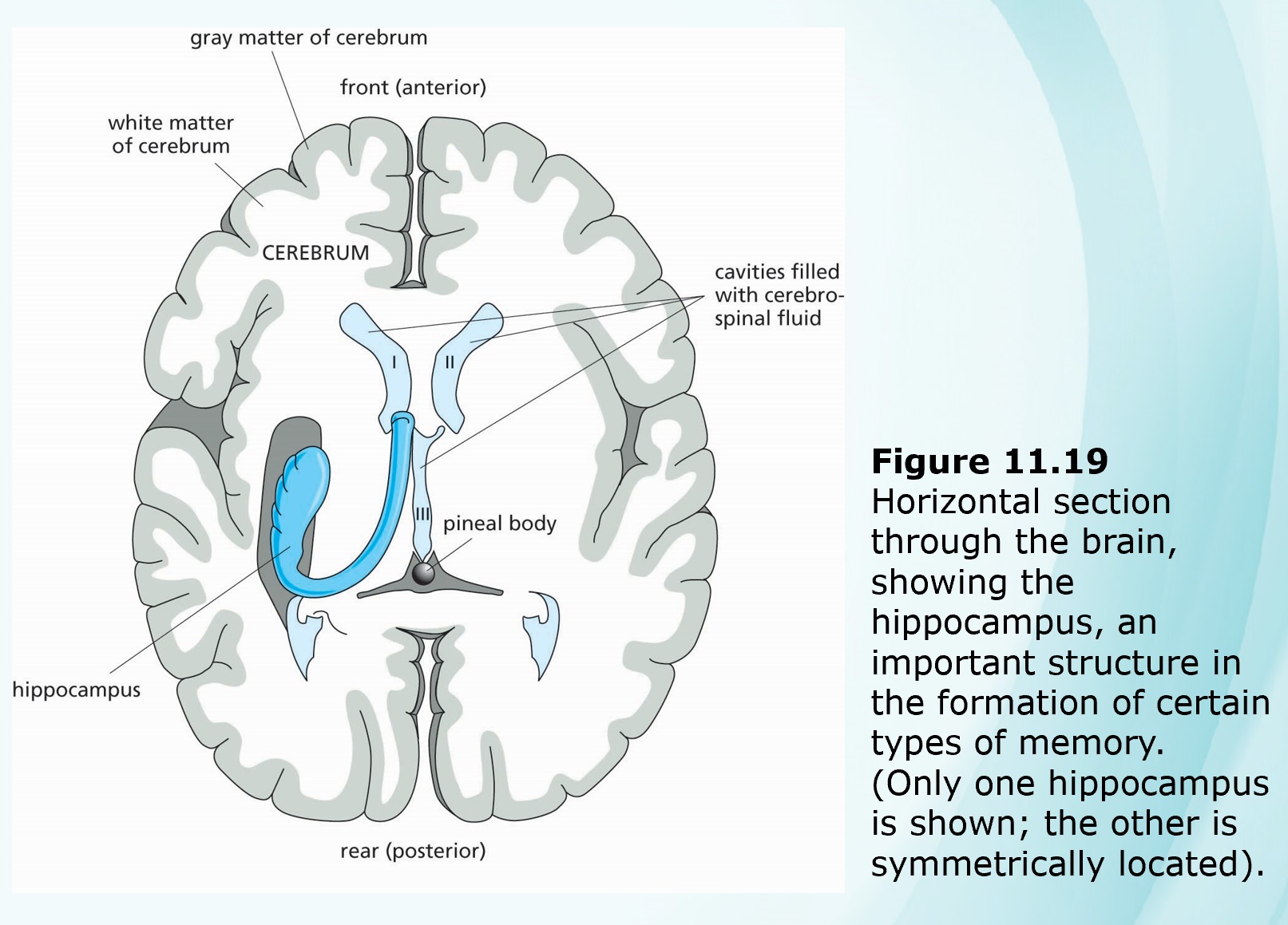

Human brain








These "homunculus" diagrams are based on experimental recordings of anesthetized subjects.
The "motor homunculus" was determined by electrical stimulation of locations in the
    primary motor cortex to see what muscles responded. Notice that the lips and fingers
    are over-represented, indicating fine motor control of those structures.
The "sensory homunculus" was determined by gently stroking parts of the body surface to see
    what locations in the primary somatosensory cortex responded electrically. Notice that the face and
    hands, which are very sensitive, are over-represented, while the body trunk is relatively insensitive.















Spinal reflex pathway

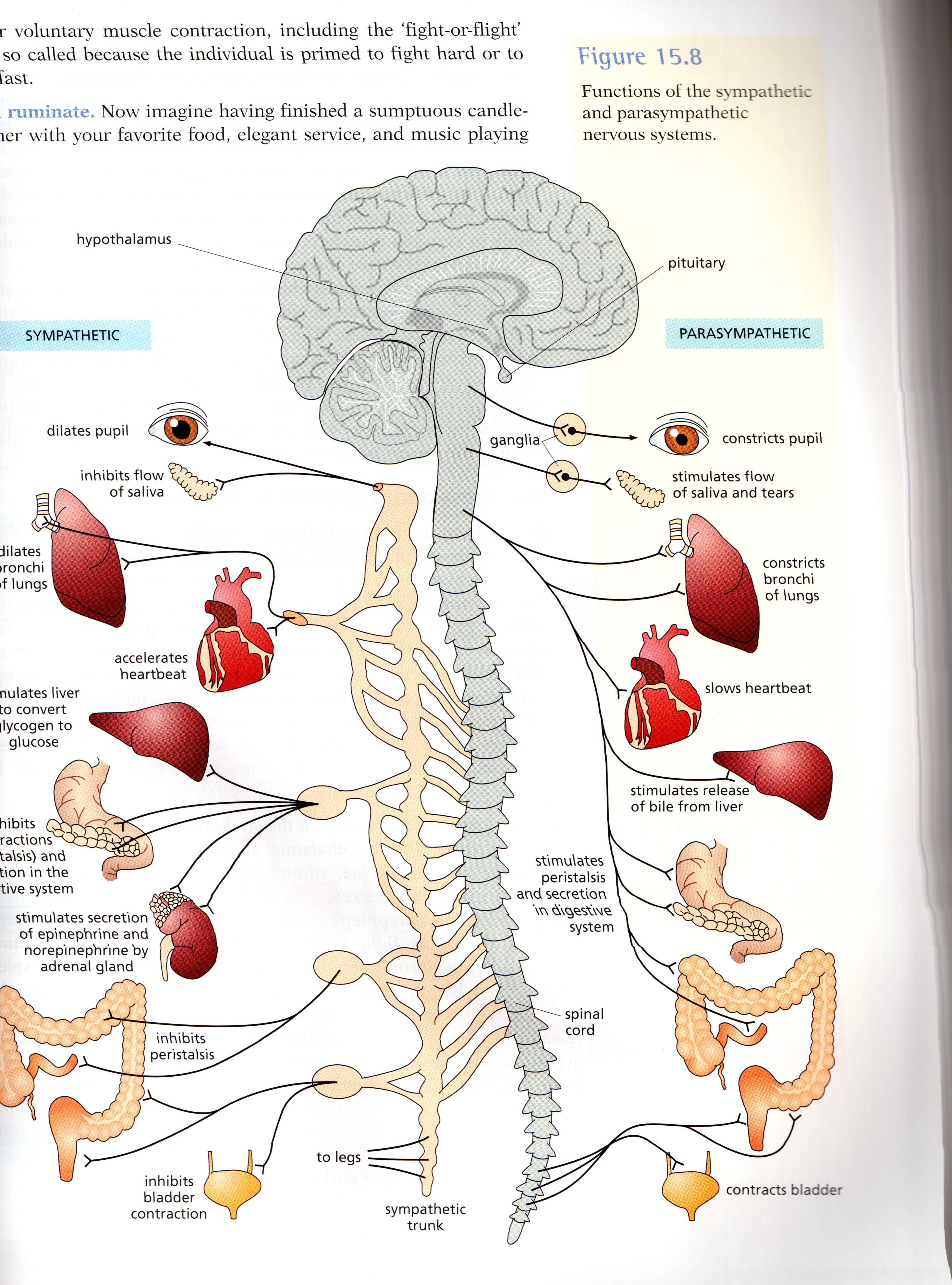

Autonomic nervous system

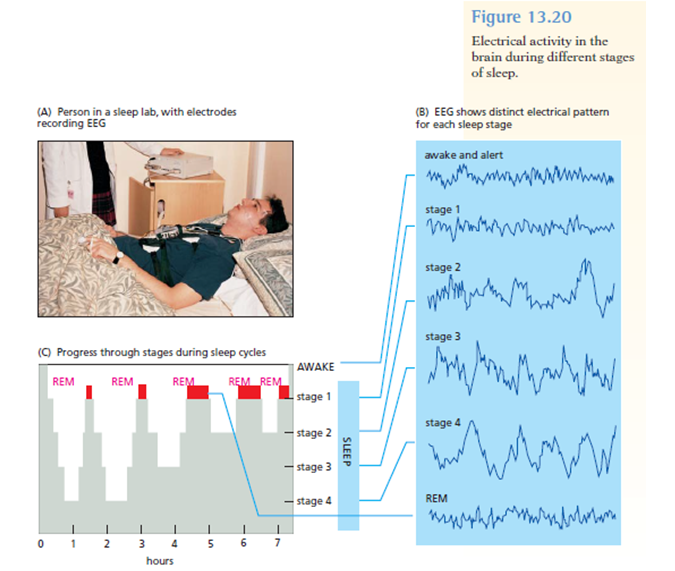

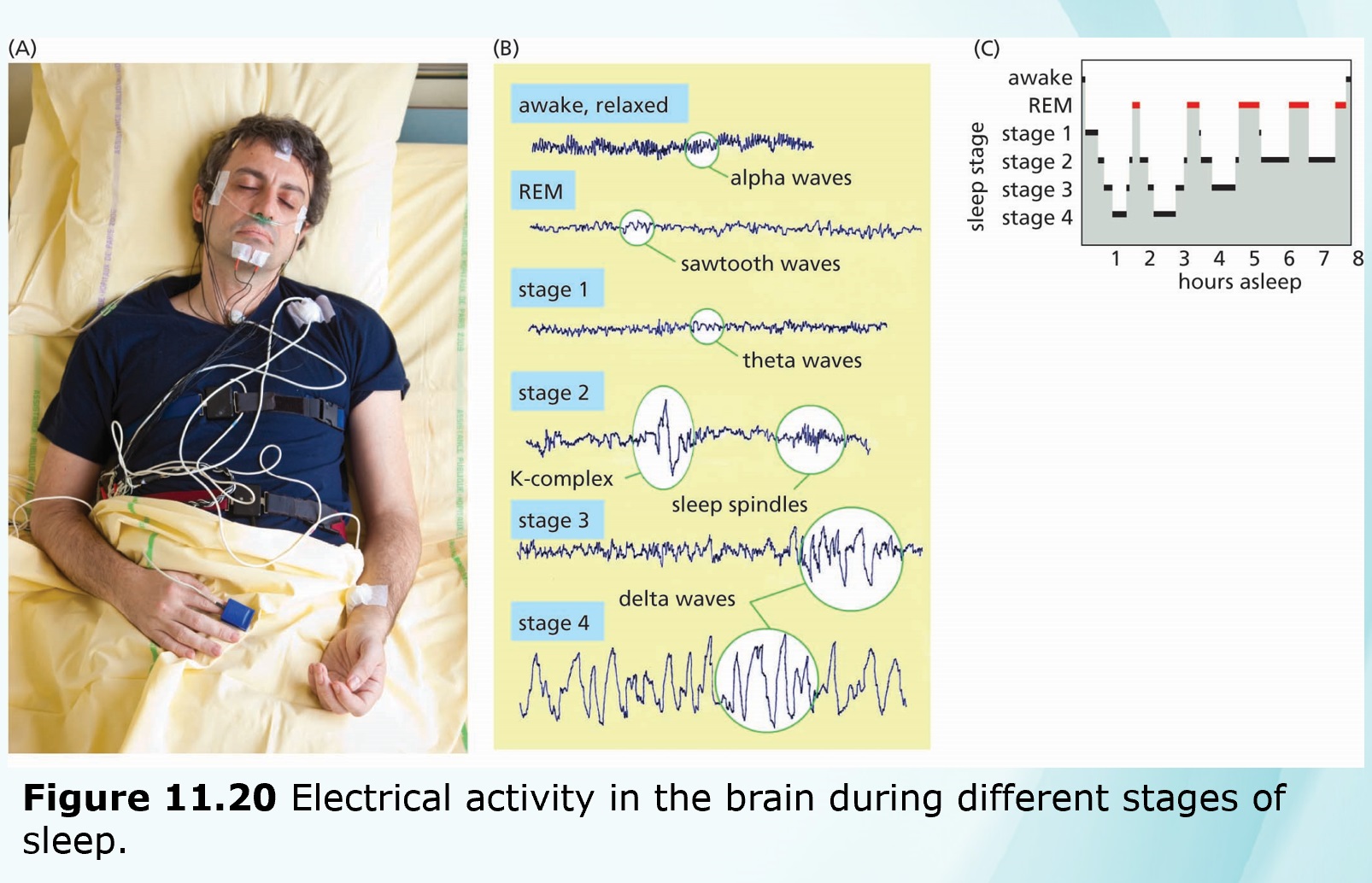

Serotonin levels replenished during sleep.

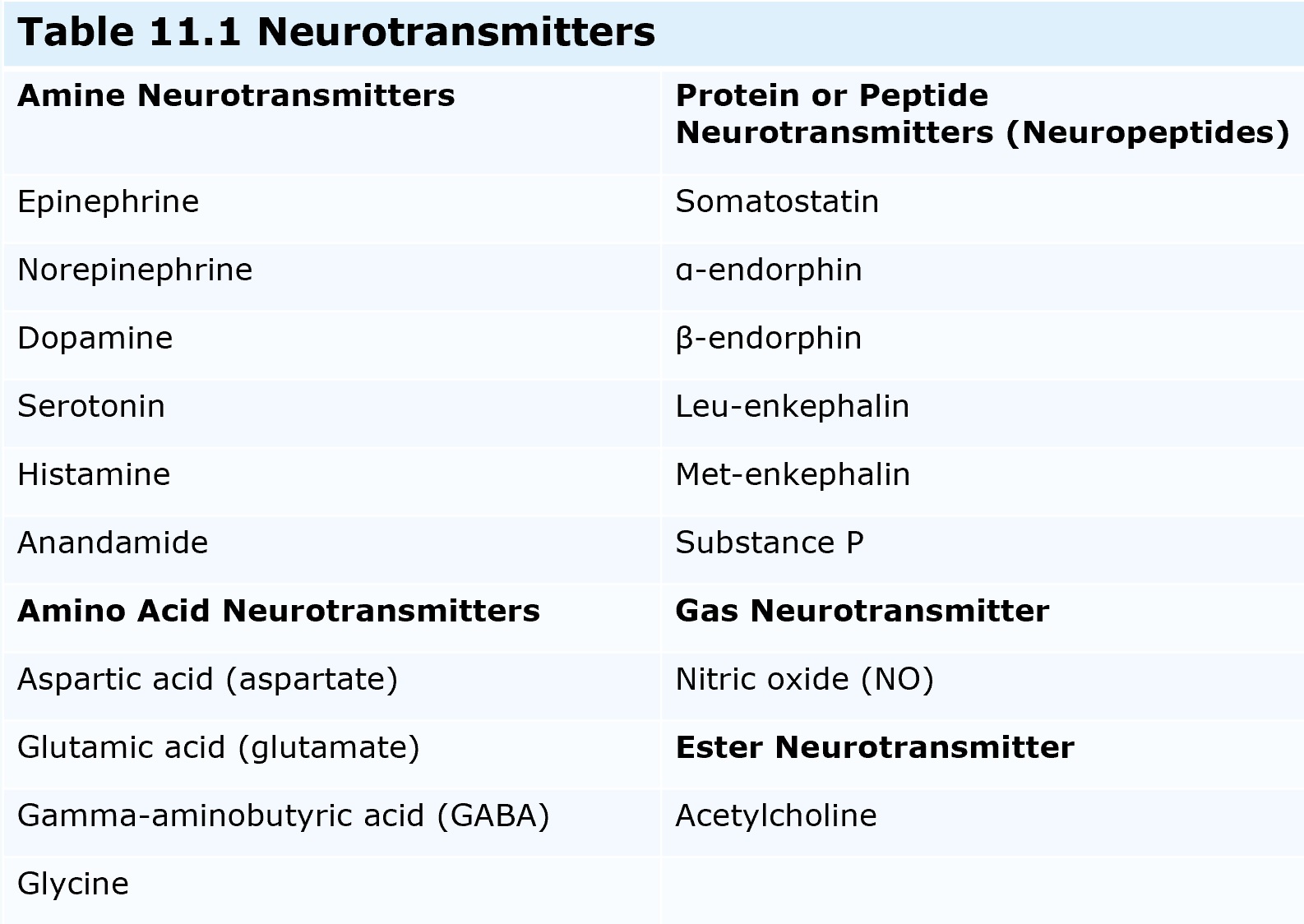

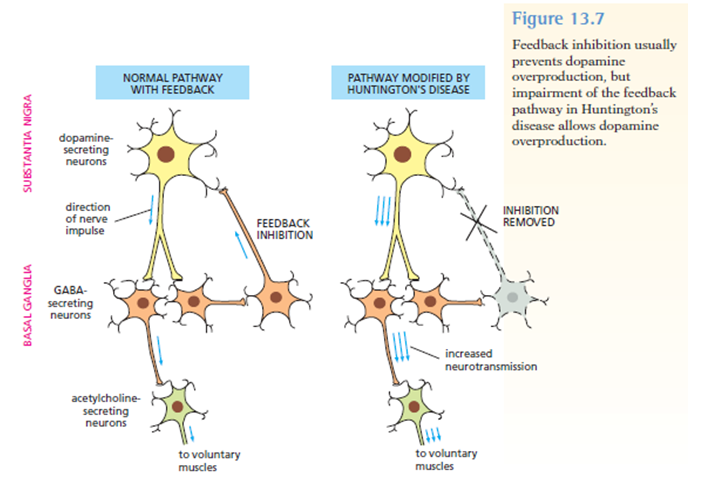

Abnormal levels of Neurotransmitters in the brain
    may cause mental illness:


      Insufficient dopamine---   Parkinsonism
      Too much dopamine---   schizophrenia
          Evidence: high drug doses

      Insufficient serotonin---   depression; suicide
